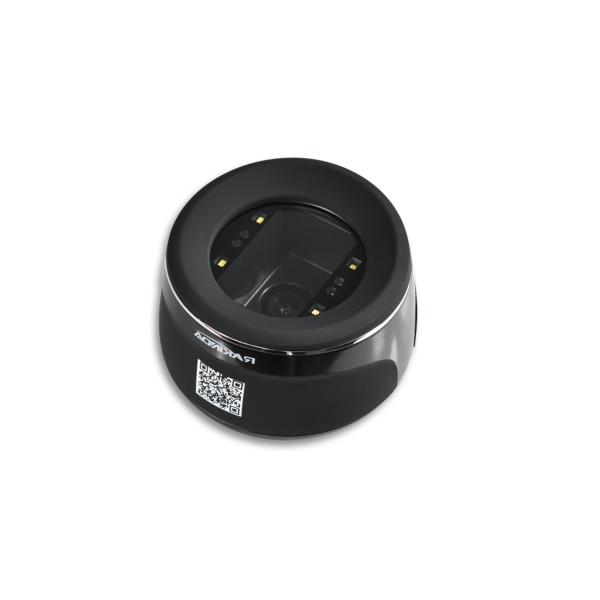

Desktop Arduino Barcode Scanner Module QR Code Reader Scan in Poor Light
Wiring
1. If your scanner is equipped with an RS-232 interface:
① Plug the supplied cable’s RJ45 connector into the data port on the scanner.
② Plug the cable’s RS-232 connector into the RS-232 port on PC.
③ Plug the power adapter into the cable’s power jack.
④ Connect the power adapter to a power outlet. After 0.5s the scanner will be powered on with a beep.
2. If your scanner is equipped with a USB interface:
① Plug the supplied cable’s RJ45 connector into the data port on the scanner.
② Plug the cable’s USB connector into the USB port on PC.
③ After 0.5s the scanner will be powered on with a beep.
Technical Specifications of RD4100 QR Code Reader
| Product name | Desktop 2D Barcode Scanner |
| Item number | RD4100 |
| Processor | IOTC 0370 CHIP |
| Interface | RS-232 (9.6~115.2Kbps); USB 1.1 ( HID-KBW, HID-POS ) |
| Image Sensor | 752× 480 CMOS |
| Symbologies | 2D: PDF417, Data Matrix, QR Code
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
Codabar, Code 128, Code 93, ITF-6, ITF-14,
Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand,
RSS-Limited, RSS-14), Code 39, Code 11,
MSI-Plessey, Plessey |
| Scan Mode | Sense mode |
| Resolution | 10mil |
| Light Source | White LED |
| Scan Window | 38.3mm*60.4mm |
| PCS | ≥ 30% |
| FOV | Diagonal: 85°, Horizontal: 63.7° , Vertical: 70° |
| Ambient Light | 0 ~ 100,000 LUX |
| Power Consumption | 1.75W (max.) |
| Power Adapter | Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz |
| Notification | Beep |
| Dimensions | 90mm(Diameter) x 60mm(H) |
| Weight | 300g |
| Operating Temperature | -10 ℃ to + 50 ℃ |
| Storage Temperature | -20 ℃ to + 60 ℃ |
| Humidity | 5% - 95% ( non-condensing ) |
| Certification | FCC Part15 Class B, CE EMC Class B |
Disassembly and retrofit
● Do not disassemble or retrofit the device yourself. Artificial damages caused by failure to observe this precaution are not covered by the warranty.
External power supply
● Use only the supplied power adapter. Otherwise there is a risk of damage to the scanner.
