IP65 Rated LV4500 Pro - Rugged Industrial Fixed Mount Scanner

Product Categories
Shenzhen Rakinda Technology Development Co., Ltd.
Contact Now

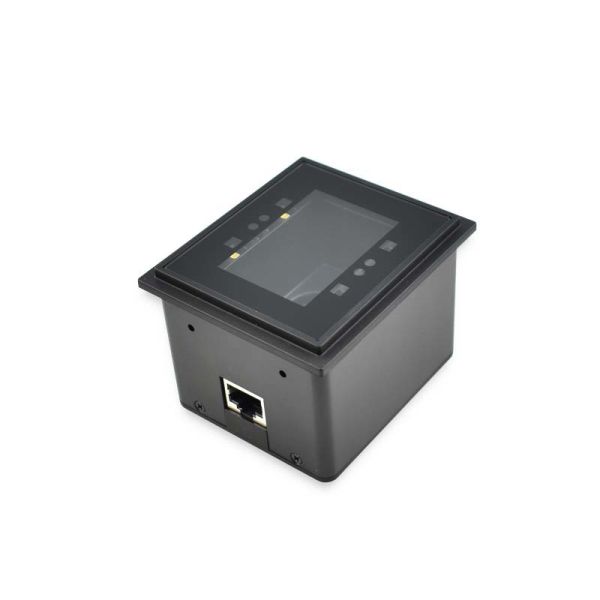

IP65 Rated LV4500 Pro - Rugged Industrial Fixed Mount Scanner

  • 1
  • 2
  • 3

Brand Name : Rakinda

Model Number : LV4500 Pro

Certification : CE,FCC,ROHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 200PCS/Week

Delivery Time : 5-8working days

Packaging Details : 1PCS/Box

Image Sensor : 640*480 CMOS

Illumination : 3000K white LED

Resolution : ≥4mil

Scan Window : 45mm×45mm

Interface : S-232, USB 5VDC±5%

Contact Now

Built to withstand the toughest conditions, the LV4500 Pro is an IP65 rated barcode scanner designed for industrial durability. Its sealed housing is impervious to dust, water, and contaminants, ensuring reliable operation in demanding settings like warehouse logistics and outdoor kiosks. Operating in a wide temperature range from -20°C to 60°C, this rugged barcode reader guarantees consistent performance. The combination of an IR sensor and light sensor provides automatic triggering, boosting productivity in self-service kiosks and automated data collection systems without manual intervention.

Rugged Barcode Scanner Parameters

Performance
Image Sensor 640*480 CMOS
Illumination 3000K white LED
Symbologies 2D PDF417, Data Matrix, QR Code, Micro QR, Aztec, etc
1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Interleaved 2 of 5, Code 128 (FNC1), Code 93, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), MSI-Plessey, Code 39 (Code 39 FULL ASCII), Plessey, etc
Resolution 1D ≥4mil
Typical Depth of Field EAN-13 (13mil) 0-170mm
Code 39 (20mil) 15-200mm
Code 128 (10mil) 0-160mm
QR Code (20mil) 0-95mm
Scan Window 45mm×45mm
Scan Modes Sense mode, Continuous mode, Command mode
Min. Symbol Contrast 1D 25%
Scan Angle 1 Roll: 360°, Pitch: ±50°, Skew: ±50°
Field of View Vertical 70° , Horizontal 55°
Physical
Interface S-232, USB 5VDC±5%
Operating Voltage Current@5VDC 120mA
Operating (RMS) Idle 63mA
Dimensions 78.7(W)×47.7(D)×67.7(H)mm (max.)
Weight (without cable) 132g
Notification Beeper, multi-colored LED indicator
Environmental
Operating Temperature -20℃ to 60℃ (-4°F to 140°F)
Storage Temperature -40℃ to 85℃ (-40°F to 185°F)
Humidity 5%~95% (non-condensing)
ESD ±15kV (air discharge) ±8kV (direct discharge)
Sealing IP65 (not including interface)
Accessories
Cable Optional USB cable used to connect the scanner to a host device.
Optional RS-232 cable used to connect the scanner to a host device.
Power Adapter Optional DC5V power adapter to provide power for the scanner with RS-232 cable.
