Handheld Bluetooth Rfid Reader Android Usb Long Range Rfid Reader Writer
UHF Scanner SMB02H
—Management for electronic entity ID,tobacco, fabric,warehouse logistics,factory purchse-sell-stock, property
Handheld Bluetooth Rfid Reader Performance:
| Working Frequency | 860-960MHz (including GX:902Mhz~928MHz; EU: 865-868MHz) |
| Supporting Protocol | EPC Global ISO18000-63(former ISO18000-6C & ISO18000-6B) |
| Output Power | 0-33dBM |
| Output Power Accuracy | +/-1dB |
| Output Power Gain | +/-0.2dB |
| Receiving Sensibility | <-85dBm |
| Read distance | 3-15m(complian to request of class NO. 5 label reading distance) |
| Read lable peak value speed | >200pcs/second |
| Antenna | 3dbi or 4dbi cicular polarization antenna |
| Option | 1D/2D scan, IrDA metering, glare flashligh |
| Serveral status notice | LED display,buzzer, power and charger indicator |
| Battery | Removeable 6000mAh polymer battery |
| Unique patent achieved structure | universal for 5-8 inch cellphone /pad |
Handheld Bluetooth Rfid Reader Features:

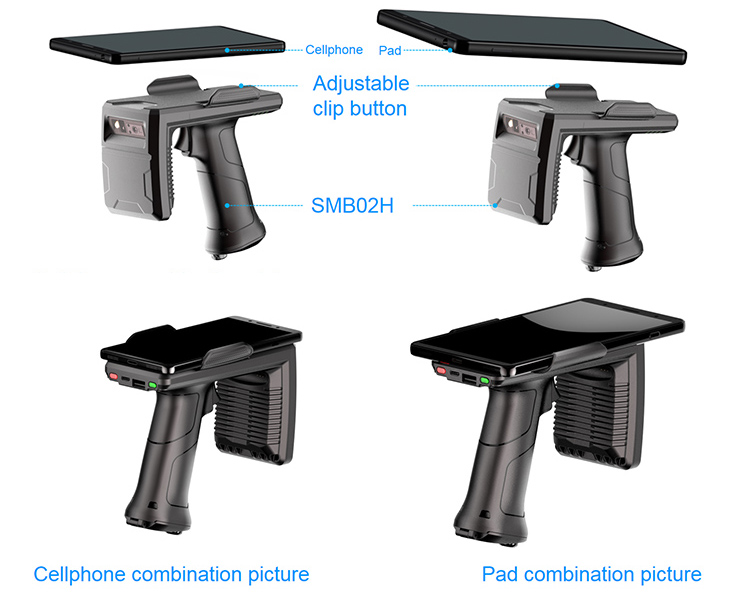

* Good universality:universal for 5-8 inch cellphone /pad
* High performance of UHF reading ability, supports 6B & 6C protocol, reads long distance UHF labels, also supports multiple labels reading.
* Serveral function optional: standard accessory UHF RFID optional 1D/2D scanner head,IrDA metering, glare flashlight,etc.
* Serveral status indicator:builtin LED, buzzer
* Fast and efficient software integration:offer jar packet to call, finish client software integration, also provide port jar packet.
* Intelligent management:low power consumption , sleep after no peration over 30 minutes, trigger to awake.
* Double battery standby:eqiup with 2 6Ah polymer battery, last for 4 to 8 hours.
* Metal casing with handle:easy to handle, good for heat dissipation,durable
* With charger pedestal: charge 2 battery at the same time.
* RS485 communication:compliant for RS485 port standard, RS232/RS485 standard of EIA/TIA and request of anti-interference DL/T614-2007
Long time operating and standby:
Builtin Battery: optional to equip two 6000mAh lithium battery
Working Time: 1D/2D: scan one time per second, continously working over 72 hours.
UHF: Continue to read card over 4 to 8 hours.

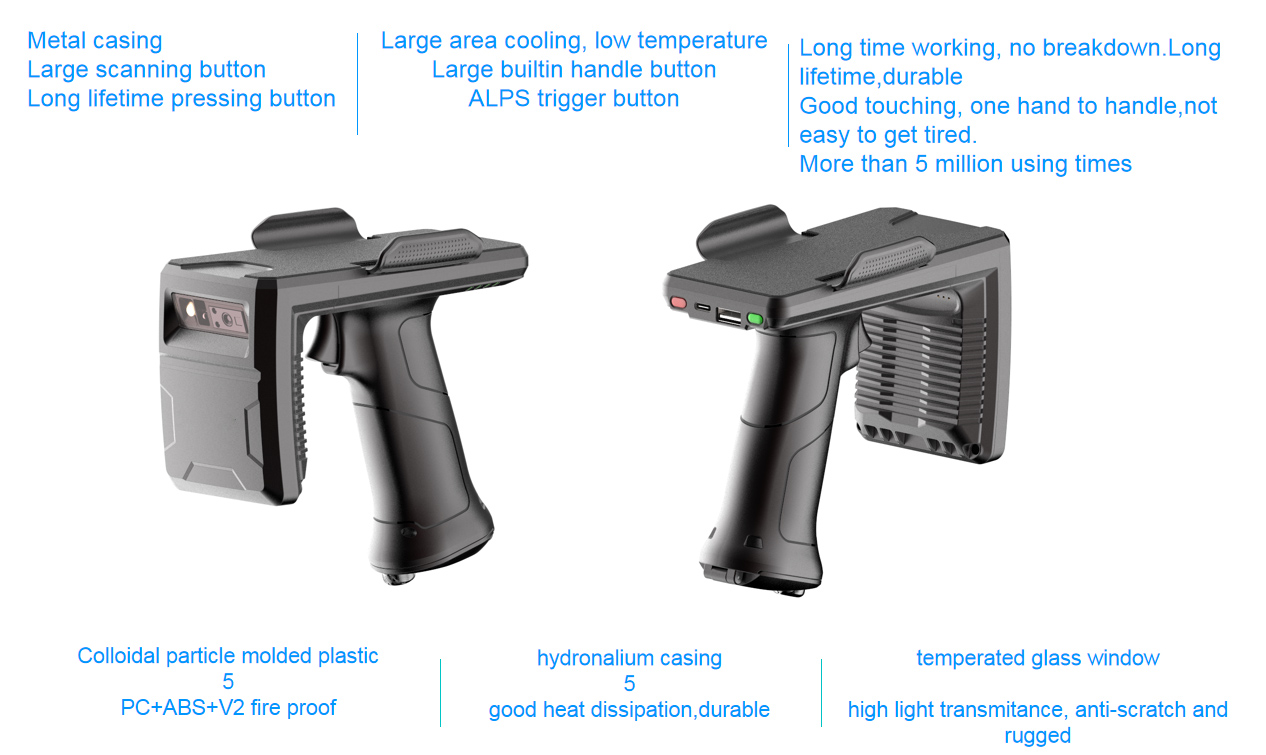

Excellent holding feeling, good heat dissipation,durable
Colloidal particle molded plastic, metal casing
