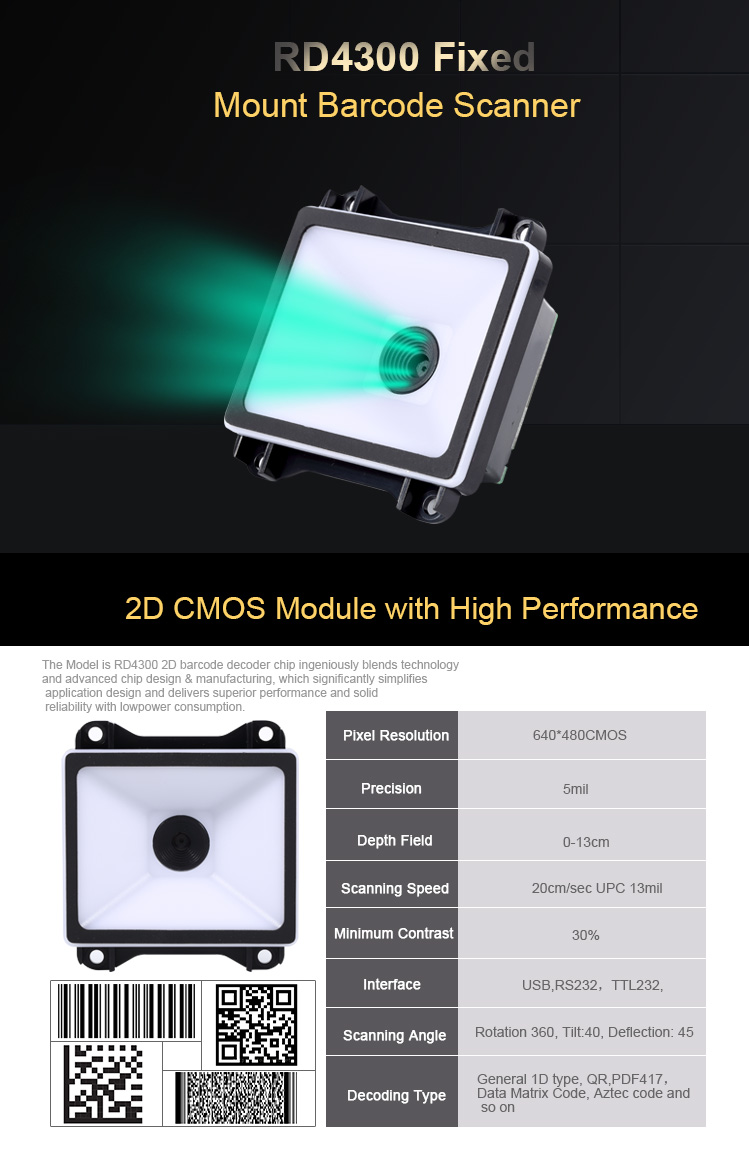

OEM Fixed QR Code Barcode Scanner Engine USB RS232 Embedded

Brand Name : Rakinda

Model Number : RD4300

Certification : CE ROHS FCC

Place of Origin : China

MOQ : 1PCS

Price : Negotiation

Payment Terms : T/T, Credit card, Paypal

Supply Ability : 200PCS/Week

Delivery Time : Within 5 working days after receiving the balance

Packaging Details : Normal craft paper and foam

Type : Fixed Barcode Scanner

Interface Type : USB, TTL232

Optical Resolution : 5mil

Light Source : White LED

Scan Angle : Roll: 360°, Pitch: ±40°, Skew: ±45°

Ambient Light : 0~100000lux (natural light)

Dimensions : 61.5(W)*65.5(D)*31.9(H)mm

Power Adapter : DC5V

Contact Now

OEM Fixed QR Code Barcode Scanner Engine USB RS232 Embedded 2D Barcode Scanner Module

Features:

1. Snappy On-screen Barcode Capture

Featuring excellent near-field reading, wide-viewing angle and snappy reading, the CPU-powered is incredibly

reader-friendly on smartphone & tablet displays.

2. Slimmer, More Compact Construction
Compared with its predecessor, the new generation of RD4300 qr code scanning module is thinner, lighter and

more compact, and thus easier to be integrated into any devices.

3. Robust Design with High Vibration Resistance
The single PCB construction and vibration-proof connectors make the qr scan engine more resistant against

vibration and help improve its reliability.

4. Outstanding Power Efficiency
The advanced technology incorporated in the 2d barcode reader module helps reduce its power consumption

and prolong its service life.

OEM Fixed QR Code Barcode Scanner Engine USB RS232 Embedded

Product Parameters:

Performance Image Sensor 640 * 480 CMOS
Light Source White LED
Symbologies 2D PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One
1D EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K
Resolution ≥5mil
Typical Depth of Field EAN-13 25mm-110mm (13mil)
PDF 417 35mm-50mm (6.7mil)
Data Matrix 15mm-40mm (10mil)
QR Code 0mm-90mm (15mil)
Symbol Contrast 30%
Scan Angle** Roll: 360°, Pitch: ±40°, Skew: ±45°
Field of View Horizontal 68°, Vertical 51°, Diagonal 84.8°
Mechanical Interface TTL-232, RS-232, USB
Electrical Power Adapter DC5V power adapter to power the NLS-EVK with RS-232 cable.
Current 3.3VDC Operating 335mA (typical), 479mA (max.)
Idle 93mA
Dimensions 61.5(W)×65.5(D)×31.9(H)mm (max.)
Weight 33g
Environmental Operating Temperature -40℃~+60℃
Storage Temperature -40℃~+75℃
Humidity 5%~95% (non-condensing)
Ambient Light 0~100000lux (natural light)
Accessories Cable

USB Used to connect the NLS-EVK to a host device.

RS-232 Used to connect the NLS-EVK to a host device.
